Hamer Line Blind Valves

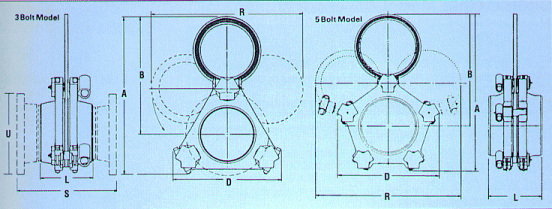

3-,5-,7- and 9-Bolt (BW) Model
Dimensions - ANSI 150 Maximum
Working Pressure 295 PSI
|
|
| 3
Bolt Model 3BW15 |
5
Bolt Model 5BW16 |
| Size
Inches |
2 |
2½ |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
| A |
107/8 |
111/8 |
125/8 |
153/8 |
171/2 |
195/8 |
231/2 |
291/8 |
331/8 |
363/4 |
401/2 |
481/2 |
521/2 |
64 |
| B |
73/8 |
77/8 |
9 |
107/8 |
121/2 |
141/8 |
171/2 |
22 |
253/8 |
277/8 |
29 |
343/8 |
373/4 |
441/2 |
| D |
81/2 |
81/2 |
91/2 |
12 |
131/2 |
141/4 |
161/4 |
193/4 |
221/4 |
251/4 |
241/4 |
311/4 |
33 |
39 |
| L |
5 |
51/2 |
51/2 |
6 |
7 |
7 |
8 |
8 |
91/8 |
10 |
12 |
17 |
18 |
20 |
| R |
93/8 |
10 |
111/2 |
133/4 |
157/8 |
18 |
225/8 |
281/2 |
327/8 |
357/8 |
377/8 |
441/2 |
491/8 |
60 |
| S* |
101/4 |
111/8 |
111/8 |
12 |
14 |
14 |
161/8 |
161/8 |
181/4 |
201/8 |
221/8 |
281/8 |
291/2 |
32 |
| GVL* |
71/4** |
71/2 |
8 |
9 |
10 |
101/2 |
111/2 |
13 |
14 |
15 |
16 |
17 |
18 |
20 |
| U |
6 |
7 |
71/2 |
9 |
10 |
11 |
131/2 |
16 |
19 |
21 |
25 |
25 |
291/2 |
32 |
| Weight Lb |
21 |
27 |
30 |
43 |
60 |
75 |
100 |
185 |
240 |
330 |
430 |
816 |
896 |
1584 |
| * |
S is our standard end to end lengths for
flanged BW Model line blinds. Tolerance: ±3/16". Specify:'SP
209" |
|
GVL (Gate Valve Length per ASME B16.10) is
also available. Specify:'SP 195' |
|
Special end-to-end dimensions are available
upon request. |
| ** |
Nonstandard GVL |
Top
Dimensions-ANSI 300 Maximum Working Pressure 740 PSI
|
| 3
Bolt Model 3BW30 |
| Size
Inches |
½ |
¾ |
1 |
1½ |
2 |
2½ |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
| A |
71/2 |
71/2 |
71/2 |
81/4 |
113/4 |
12 |
141/8 |
157/8 |
201/8 |
241/4 |
31 |
365/8 |
38 |
| B |
43/4 |
43/4 |
43/4 |
53/8 |
73/4 |
81/2 |
95/8 |
111/8 |
141/4 |
173/4 |
23 |
271/8 |
283/8 |
| D |
61/2 |
61/2 |
61/2 |
71/4 |
91/2 |
10 |
111/2 |
121/2 |
151/2 |
173/8 |
221/2 |
26 |
261/2 |
| L |
43/4 |
43/4 |
43/4 |
53/8 |
51/2 |
6 |
61/4 |
63/4 |
75/8 |
9 |
117/8 |
143/8 |
15 |
| R |
57/8 |
57/8 |
57/8 |
63/4 |
93/4 |
103/8 |
121/8 |
14 |
181/8 |
227/8 |
293/8 |
345/8 |
363/8 |
| S* |
9 |
93/8 |
97/8 |
107/8 |
111/8 |
121/8 |
121/2 |
135/8 |
151/2 |
177/8 |
211/8 |
247/8 |
263/8 |
| GVL* |
71/2** |
71/2** |
71/2** |
8 |
81/2 |
91/2 |
111/8 |
12 |
157/8 |
161/2 |
18 |
193/4 |
30 |
| U |
33/4 |
45/8 |
47/8 |
61/8 |
61/2 |
71/2 |
81/4 |
10 |
121/2 |
15 |
171/2 |
201/2 |
23 |
| Weight Lb |
3 |
3 |
3 |
15 |
30 |
40 |
50 |
54 |
110 |
146 |
300 |
420 |
465 |
| * |
S is our standard end to end lengths for
flanged BW Model line blinds. Tolerance: ±3/16". Specify:'SP
209" |
|
GVL (Gate Valve Length per ASME B16.10) is
also available. Specify:'SP 195' |
|
Special end-to-end dimensions are available
upon request. |
| ** |
Nonstandard GVL |
