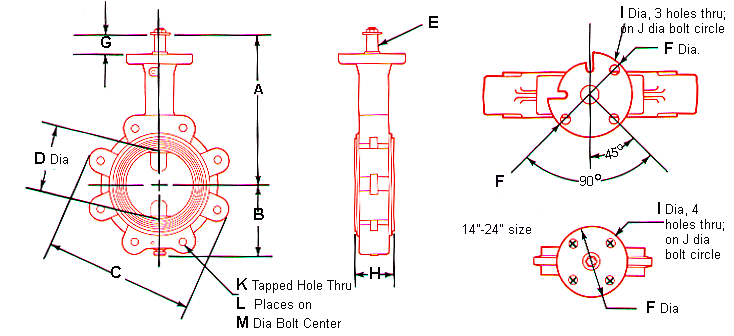

Weco Model 22L Butterfly Valve Dimensions
|
 |
|
DIM
|
Valve Size, inches |
| 2 |
2
1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
| A |
7
9/32 |
7
25/32 |
81/16 |
95/32 |
921/32 |
105/32 |
1119/32 |
1227/32 |
1411/32 |
1431/32 |
177/16 |
187/16 |
197/16 |
233/4 |
| B |
3 |
3
11/32 |
3
5/8 |
41/4 |
413/16 |
5
5/16 |
7 |
8
1/4 |
9
3/4 |
10
3/8 |
1115/16 |
1215/16 |
1315/16 |
171/8 |
| C |
6 |
7 |
7
1/2 |
9 |
10 |
11 |
13
1/2 |
16 |
19 |
20
3/4 |
23
1/4 |
25 |
27
1/4 |
32 |
| D |
21/16 |
2
1/2 |
31/16 |
41/16 |
51/16 |
61/16 |
81/16 |
10 |
12 |
13
1/4 |
15
9/32 |
17
9/32 |
19
1/4 |
23 |
| E |
5/8
Sq |
5/8
Sq |
5/8
Sq |
5/8
Sq |
5/8
Sq |
5/8
Sq |
7/8
Sq |
7/8
Sq |
1
1/8 Sq |
1
1/8 Sq |
2.0
Dia 1/2Keyway |
2.0
Dia 1/2Keyway |
2.0
Dia 1/2Keyway |
21/2
Dia 5/8Keyway |
| F |
4 |
4 |
4 |
4 |
4 |
4 |
6 |
6 |
6 |
6 |
8 |
8 |
8 |
8 |
| G |
1
1/32 |
1
1/32 |
1
1/32 |
1
9/32 |
1
9/32 |
1
9/32 |
19/32 |
1
9/32 |
1
9/32 |
1
9/32 |
3
3/16 |
3
3/16 |
3
3/16 |
4
3/8 |
| H |
1
5/8 |
1
3/4 |
1
3/4 |
2 |
2
1/8 |
2
1/8 |
2
1/2 |
2
1/2 |
3 |
3 |
4 |
4
1/2 |
5 |
6
1/16 |
| I |
7/16 |
7/16 |
7/16 |
7/16 |
7/16 |
7/16 |
9/16 |
9/16 |
9/16 |
9/16 |
17/32 |
17/32 |
17/32 |
21/32 |
| J |
3
1/4 |
3
1/4 |
3
1/4 |
3
1/4 |
3
1/4 |
3
1/4 |
5 |
5 |
5 |
5 |
6
1/2 |
6
1/2 |
6
1/2 |
6
1/2 |
| K |
5/8-11 |
5/8-115/8-11 |
5/8-11 |
5/8-11 |
3/4-10 |
3/4-10 |
3/4-10 |
7/8-9 |
7/8-9 |
1-8 |
1-8 |
1
1/8 -7 |
1
1/8 -7 |
1
1/4 -7 |
| L |
4 |
4 |
4 |
8 |
8 |
8 |
8 |
12 |
12 |
12 |
16 |
16 |
20 |
20 |
| M |
4
3/4 |
5
1/2 |
6 |
7
1/2 |
8
1/2 |
9
1/2 |
11
3/4 |
14
1/4 |
17 |
18
3/4 |
21
1/4 |
22
3/4 |
25 |
29
1/2 |
|
