Hamer Line Blind Valve

Visible Wedge Model Non-spread (Rigid) Type

Model VW15;ANSI 150 flanged (2"-16")

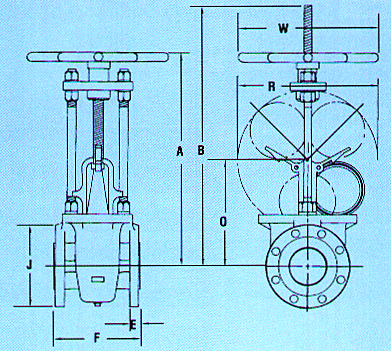

Dimensions

Model VW30; ANSI 300 flanged (2" - 12")

Dimensions



Hamer Visible Wedge Blind Valve
Wedge Action: provides positive, absolute closure
Full flow when open: Open wedge provides unrestricted flow.
Easy Operation: Handwheel allows quick operation.

Suitable Applications: Any horizontal piping installation where fluid loss is not acceptable.

Stainless steel seats and wedges available upon request.

Dimensions - ANSI 150 Maximum Working Pressure 285 PSI

Model VW15    ANSI 150
Size In 2 3 4 6 8 10 12 14 16
A 20 247/8 293/4 361/2 451/4 481/8 581/2 643/8 761/2
B 185/8 231/2 293/8 353/8 473/8 523/4 67 723/4 843/4
E 3/4 15/16 15/16 1 111/8 133/16 11/4 13/8 17/16
F 7 8 9 101/2 111/2 13 14 15 16
J 6 71/2 9 11 131/2 16 19 21 231/2
O 63/8 87/8 111/4 13 18 203/8 263/8 283/8 363/4
W 71/2 12 14 16 16 20 20 24 24
Weight lb 47 78 134 197 305 494 620 785 915

Dimensions - ANSI 300 Maximum Working Pressure 740 PSI

Model VW30    ANSI 300
Size In 2 3 4 6 8 10 12
A 143/4 185/16 225/16 275/16 343/4 381/2 449/16
B 185/8 231/4 2813/16 343/4 463/8 513/8 601/8
E 7/8 1/8 11/4 17/16 15/8 17/8 2
F 81/2 111/8 12 157/8 161/2 18 193/4
J 61/2 81/4 10 121/2 15 171/2 201/2
O 63/8 87/8 111/4 13 18 203/8 241/8
R 81/2 111/2 143/4 18 227/8 261/4 301/2
W 71/2 123/4 123/4 16 16 20 20
Weight lb 55 95 175 310 430 645 825
