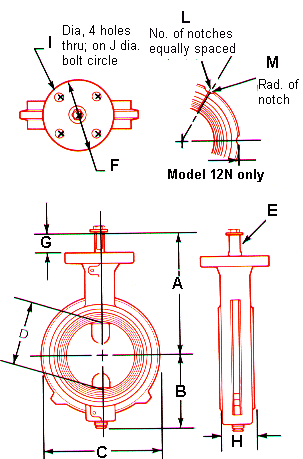

Model 12 and Model 12 N Butterfly Valves Dimensions |
Weco
Butterfly Valve Home |
| Dim. |
Valve Size, Inches |
| 2 |
2
1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
| A |
4
31/32 |
5
5/8 |
5
29/32 |
7
9/32 |
7
9/32 |
7
25/32 |
9
13/32 |
10
21/32 |
12
5/32 |
1431/32 |
177/16 |
| B |
3 |
3
11/32 |
35/8 |
4
1/4 |
4
13/16 |
5
5/16 |
7 |
81/4 |
93/4 |
101/4 |
1115/16 |
| C |
4
1/8 |
4
7/8 |
53/8 |
6
7/8 |
73/4 |
8
3/4 |
11 |
133/8 |
161/8 |
1711/16 |
201/8 |
| D |
2
1/16 |
21/2 |
31/16 |
41/16 |
51/16 |
6
1/16 |
81/16 |
10 |
12 |
131/4 |
151/4 |
| E |
5/8
Sq |
5/8
Sq |
5/8Sq |
5/8Sq |
5/8
Sq |
5/8
Sq |
7/8
Sq |
7/8
Sq |
11/8Sq |
11/8Sq |
2Dia.
1/2Keyway |
| F |
4 |
4 |
4 |
4 |
4 |
4 |
6 |
6 |
6 |
6 |
8 |
| G |
1
1/32 |
1
1/32 |
1
1/32 |
1
9/32 |
1
9/32 |
1
9/32 |
1
9/32 |
1
9/32 |
19/32 |
19/32 |
33/16 |
| H |
1
5/8 |
13/4 |
13/4 |
2 |
2
1/8 |
2
1/8 |
2
1/2 |
2
1/2 |
3 |
3 |
4 |
| I |
7/16 |
7/16 |
7/16 |
7/16 |
7/16 |
7/16 |
9/16 |
9/16 |
9/16 |
9/16 |
17/32 |
| J |
3
1/4 |
31/4 |
31/4 |
31/4 |
31/4 |
31/4 |
5 |
5 |
5 |
5 |
61/2 |
| K |
3
3/4 |
----- |
43/8 |
63/8 |
629/32 |
81/2 |
---- |
---- |
---- |
---- |
---- |
| L |
4 |
---- |
6 |
6 |
6 |
8 |
---- |
---- |
---- |
---- |
---- |
| M |
5/16 |
---- |
5/16 |
3/8 |
3/8 |
3/8 |
---- |
---- |
---- |
---- |
---- |
